QK1327 CNC Lathe Machine for Pipe Threading with Big Bore
Heavy duty pipe threading cnc lathe machine QK1327
QK1327 High-Performance CNC Turning in Threaded Applications
Pipe threading cnc lathe machine QK1327
| Specification | QK1327 | |
| Swing over bed | mm | 1000 |
| Swing over cross slide | mm | 310 |
| Distance between centers | mm | 1500-6000 |
| Pipe threading range | mm | 130-270 |
| Guideway width | mm | 755 |
| Max.load capacity | T | 6 |
| Spindle bore | mm | 280 |
| Spindle speed steps | — | VF.4 steps |
| Spindle speed range | rpm | 10-320 |
| Chuck | mm | Φ800/4-jaw manual |
| Turret/tool post | — | NC turret 4 position |
| Tool shank size | mm | 40×40 |
| Y axis travel | mm | 520 |
| Z axis travel | mm | 500-6000 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 4000 |
| Tailstock quill diameter | mm | φ160 |
| Tailstosk quill taper | mm | MT6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | 22 |
| Coolant pump motor | kW | 0.25 |
| Width x Height | mm | 2050×2050 |
| Length | mm | 4950/9450 |
| Net weight | T | 10.5-15.6 |

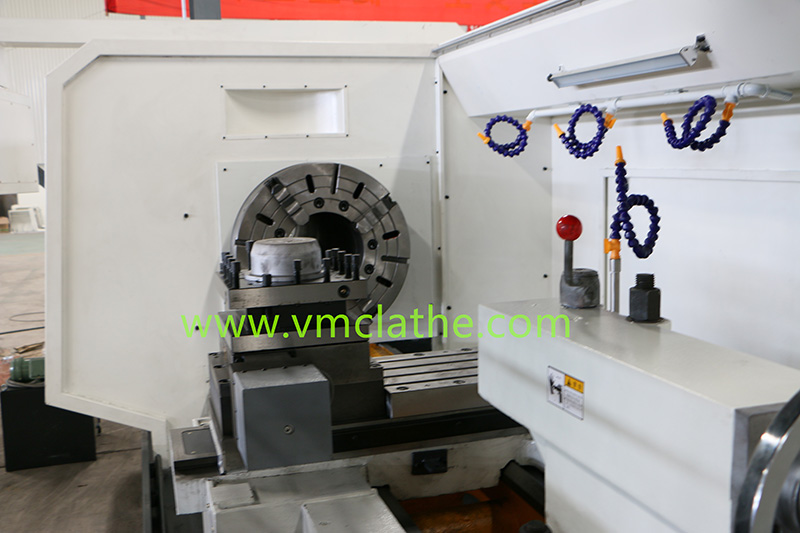

Metal pipe threading cnc lathe machine with Fanuc controller factory direct sale

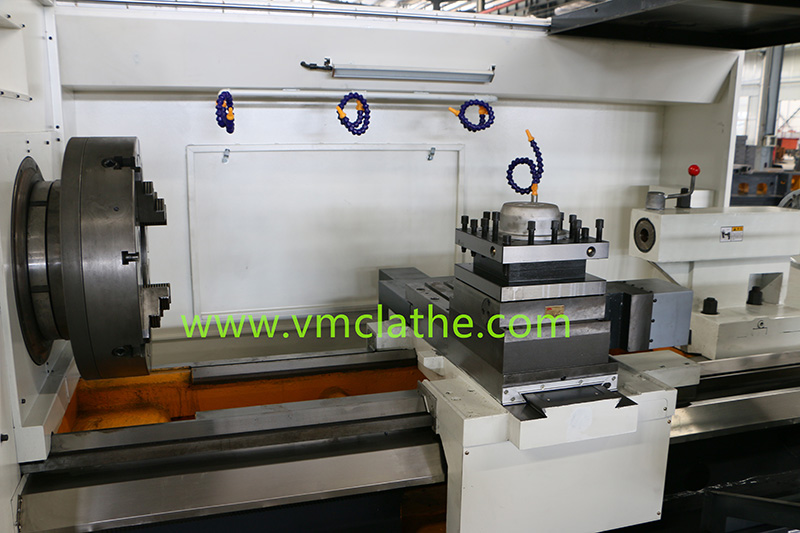

QK1327 Detail Display
