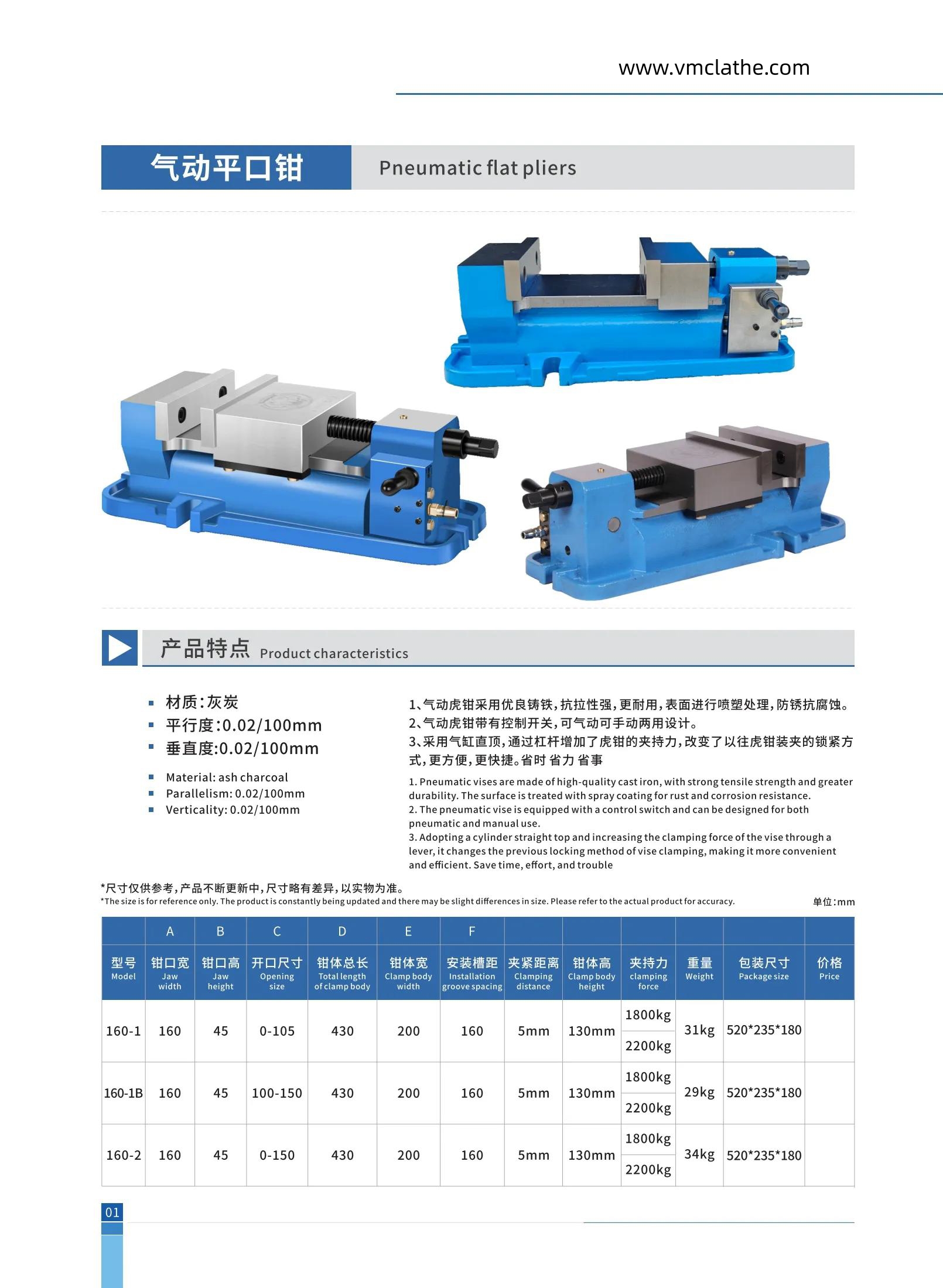

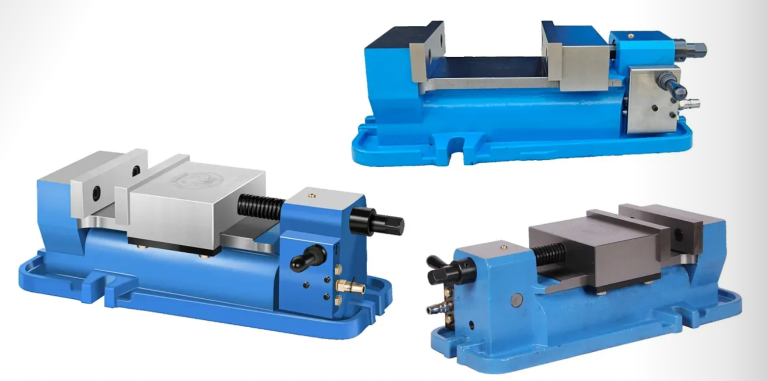

Pneumatic Vise
Pneumatic Vise
-
- Material: ash charcoal
- Parallelism: 0.02/100mm
- Verticality: 0.02/100mm
| (Model) | (Jaw width) A | (Jaw height) B | (Opening size) C | (Total length) D | (Clamp body width) E | (groove spacing) F | (Clamping distance) | (Clamp body height) | (Clamping force) | (Weight) | (Package size) |
| 160-1 | 160 | 45 | 0-105 | 430 | 200 | 160 | 5mm | 130mm | 1800kg – 2200kg | 31kg | 520*235*180 |
| 160-1B | 160 | 45 | 100-150 | 430 | 200 | 160 | 5mm | 130mm | 1800kg – 2200kg | 29kg | 520*235*180 |
| 160-2 | 160 | 45 | 0-150 | 430 | 200 | 160 | 5mm | 130mm | 1800kg – 2200kg | 34kg | 520*235*180 |
