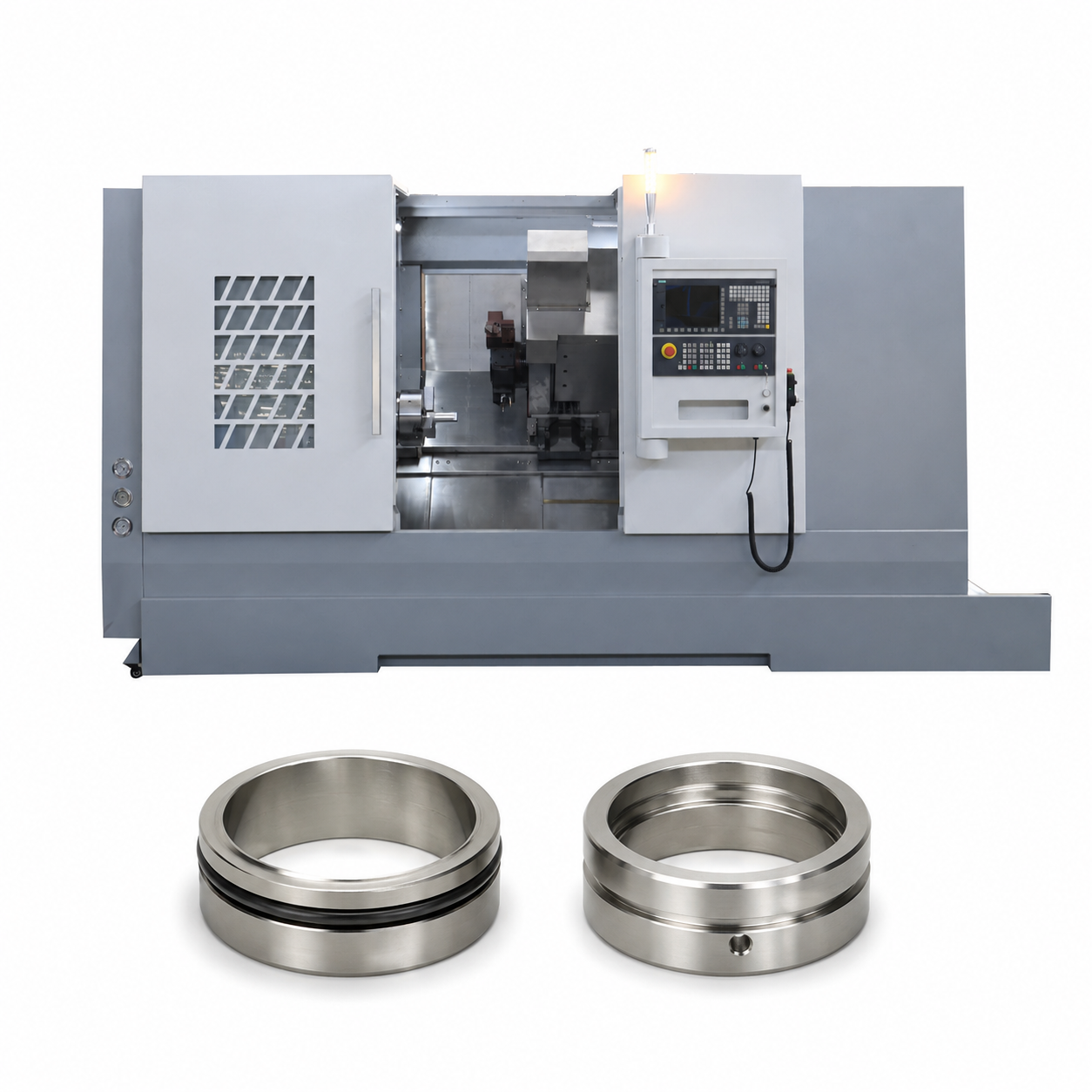

Seal sleeves are widely used in hydraulic systems, automotive components, bearings, pumps, and industrial machinery. Because these parts often require tight dimensional tolerances, excellent surface finish, and high concentricity, selecting the right machine tool is critical.
So, is a Slant Bed CNC Lathe suitable for machining seal sleeves?
The answer is yes. In fact, a Slant Bed CNC Lathe is one of the most efficient and reliable solutions for manufacturing precision seal sleeves.
Why Seal Sleeves Require High-Precision Machining
Seal sleeves typically feature:
* Precision outer diameters
* Accurate inner bores
* Grooves for seals or O-rings
* Chamfers and radii
* Fine surface finish requirements
Any deviation in concentricity or surface quality can affect sealing performance and reduce the service life of the final assembly.
For this reason, manufacturers often choose CNC turning machines capable of maintaining consistent accuracy throughout long production runs.
Advantages of a Slant Bed CNC Lathe for Seal Sleeve Production
1. Superior Rigidity
The slant bed structure provides better rigidity compared with conventional flat bed lathes.
This design minimizes vibration during cutting, helping achieve:
* Better dimensional accuracy
* Improved surface finish
* Longer tool life
These benefits are especially important when machining stainless steel, alloy steel, and hardened materials commonly used for seal sleeves.
2. Excellent Chip Removal
Seal sleeve machining often involves continuous turning operations.
The inclined structure allows chips to fall away naturally from the cutting zone, reducing the risk of chip accumulation and preventing damage to the workpiece surface.
Better chip evacuation also supports stable unmanned production.
3. Higher Machining Accuracy
A Slant Bed CNC Lathe offers greater structural stability and thermal performance.
This helps maintain:
* High concentricity
* Tight tolerances
* Consistent repeatability
For seal sleeve applications, these factors directly contribute to improved product quality.
4. Increased Productivity
Modern slant bed CNC lathes are commonly equipped with:
* Hydraulic chucks
* Servo turrets
* Automatic tool changers
* Bar feeders
These features significantly reduce setup time and improve production efficiency.
For medium and large batch production of seal sleeves, productivity gains can be substantial.
5. Capability for Complex Operations
Many seal sleeves require multiple machining processes, including:
* OD turning
* ID boring
* Grooving
* Threading
* Drilling
A slant bed CNC lathe can complete these operations in a single setup, reducing handling time and improving overall accuracy.
Conclusion
When manufacturing seal sleeves, precision, efficiency, and stability are essential.
A Slant Bed CNC Lathe offers excellent rigidity, superior chip evacuation, high machining accuracy, and increased productivity, making it an ideal choice for seal sleeve production.
Whether producing hydraulic seal sleeves, bearing sleeves, spacer sleeves, or other cylindrical precision components, a Slant Bed CNC Lathe can help manufacturers achieve higher quality and lower production costs.
If you are looking for a CNC turning solution for seal sleeve machining, choosing a high-quality Slant Bed CNC Lathe is a smart investment for long-term productivity and precision.
